High Pressure Multi Single Filter Housing 304 316L Ss Bag Filter

Brand Name : YATE

Model Number : Multi bag filter

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Set/Sets per Day multi bag filter housing

Delivery Time : To be negotiated

Packaging Details : multi bag filter housing Packaging: Wooden case

Video outgoing-inspection : Provided

Function : liquid filter

Inlet and our let size : 1/2 or 3/4 inches or customized

Working Pressure : 12 bar

Filter Bag Material : PP/PE/PTFE/SS

Min. Filtration Precision : 0.5-500 μm

Name : 1-24 bag filter

Application : Water Treatment

Contact Now

Stainless Steel 304/316 Manufacturer Industrial Filtering Equipment

Single/Multi Bag Filter Housing

High Pressure Multi Single Filter Housing 304 316L Ss Bag Filter

Model
Filter Bag#
Filter Bag
Qty
Filtration Area(m2)
Connection
Max.Flow
(m3/h)
Working Pressure(MPa)
YT-1D
1#
1
0.25
DN50
20
0.6
YT-2D
2#
1
0.5
DN50
40
0.6
YT-2P2S
2#
2
1
DN50-DN100
70
0.6
YT-3P2S
2#
3
1.5
DN80-DN100
100
0.6
YT-4P2S
2#
4
2
DN80-DN100
140
0.6
YT-5P2S
2#
5
2.5
DN80-DN100
175
0.6
YT-6P2S
2#
6
3
DN80-DN100
240
0.6
YT-7P2S
2#
7
3.5
DN80-DN100
245
0.6
YT-8P2S
2#
8
4
DN100-DN200
280
0.6
YT-10P2S
2#
10
5
DN150-DN200
350
0.6
YT-12P2S
2#
12
6
DN150-DN250
420
0.6
YT-14P2S
2#
14
7
DN200-DN250
490
0.6
YT-16P2S
2#
16
8
DN200-DN300
560
0.6
YT-18P2S
2#
18
9
DN250-DN350
630
0.6
YT-20P2S
2#
20
10
DN250-DN400
700
0.6
YT-22P2S
2#
22
11
DN300-DN450
770
0.6
YT-24P2S
2#
24
12
DN350-DN450
840
0.6

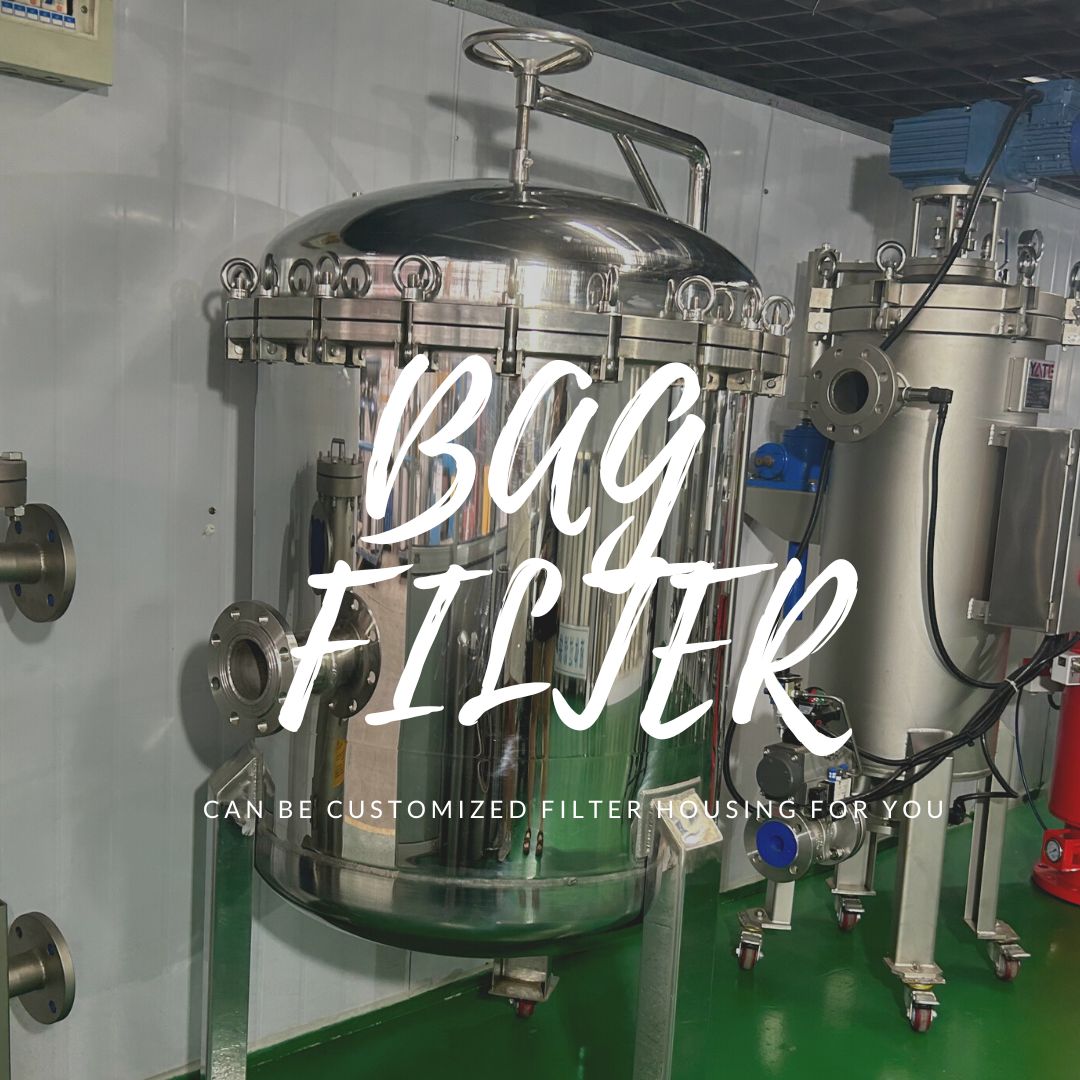

High Pressure Multi Single Filter Housing 304 316L Ss Bag Filter

Industrial Bag Filter Stainless Steel Bag Filter Housing For

Chemical Food Beverage Industry

An outlet. Steam, water or conduction oil can be introduced into the external chamber,

it can keep or increase the liquid temperature in the vessel, so that to protect liquid from

crystallization or solidification caused by temperature dropping; and improve the filter speed

of viscous liquid; and meet the temperature requirement in next process (this filter's inside

structure, work principle and features are same as single bag filter in Page9). We can

customize various jacketed bag filter as per your different working condition.Stainless Steel

304/316.

High Pressure Multi Single Filter Housing 304 316L Ss Bag Filter

PROFESSIONAL CUSTOMIZATION BY TECHNICAL TEAM

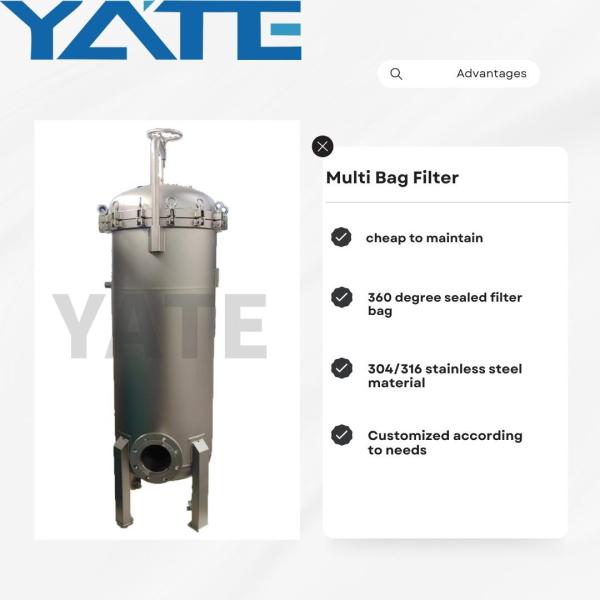

Multi-bag filter is designed for high capacity pollution or large flow filtration requirements,
provide 2-24 bags of design customization, import and export of a variety of sizes optional
(DN80-DN250), convenient direct connection, ensure sufficient equipment strength and
pipeline load bearing capacity, quick open design, unscrew the nut to remove the cover,
convenient maintenance, Made of high-quality stainless steel 304, 316L and other materials.
High Pressure Multi Single Filter Housing 304 316L Ss Bag Filter
